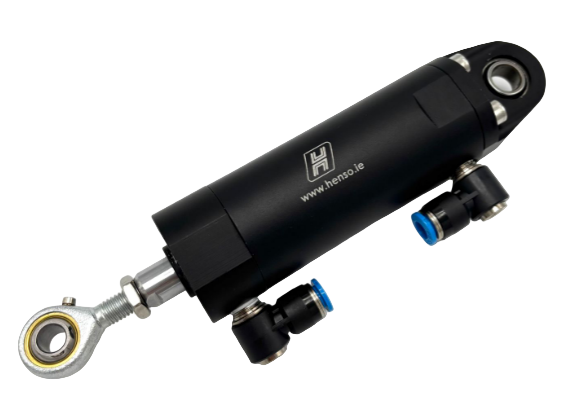

Gear Change Actuator

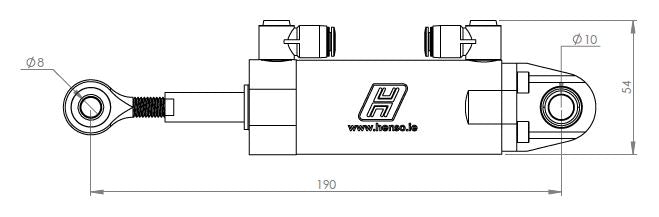

Our gear change actuator has a fixed spherical bearing at one end and an adjustable rod on the other.
As it is pneumatic, a consistent performance level is maintained through operating temperature range.
Can be supplied with mounting brackets from a range all of the major gearbox manufacturers, note mounting brackets at extra cost.
Sadev, Tractive, Xtrac, Unic, Quaife, Samsonas more available upon request.
Stroke - +/-20mm
Max Force - 800N
Weight - 550g
Max Working Temp - 100°c (Ambient)
